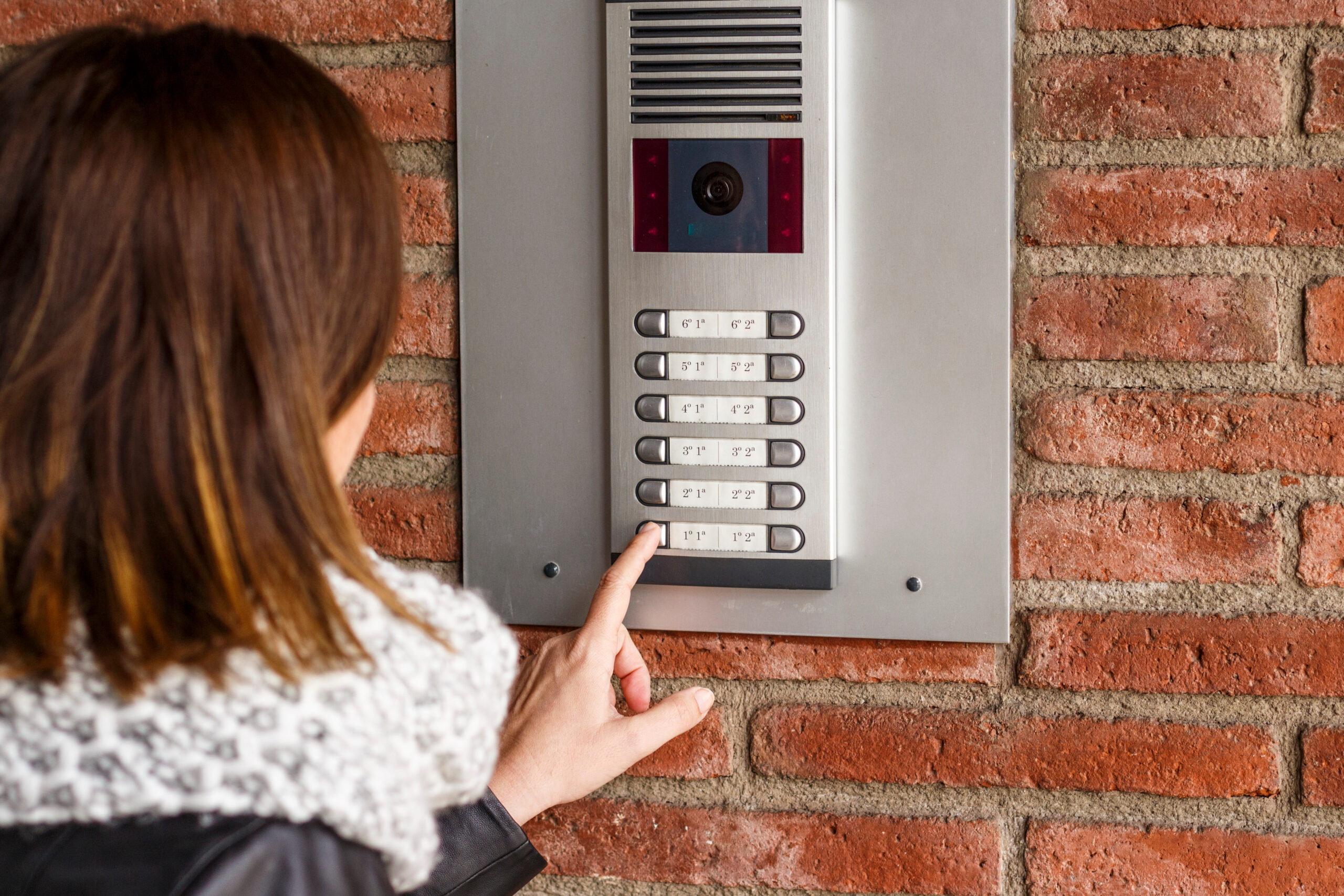

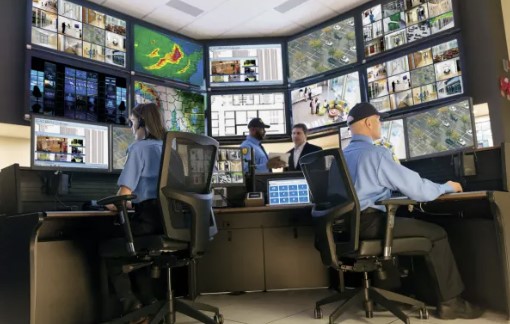

Application Photo 1 Application Photo 2 Application Photo 3 Application Photo 4 Application Photo 5

Description

The security business has evolved beyond simple intrusion detection and surveillance monitoring. Security devices are typically now IP-based in order to send and receive data over the Internet to users at any location. The use of Ethernet networks, the Internet of Things (IoT) and wireless systems can now take door switch data and notify users that it is open or closed, whether they are on site or not.

Here are a few other examples. A thermostat control or CCTV camera can send its data off-site to users. HVAC, lighting and shade controls can be programmed and actuated in areas when people are present. Actions can be based on access control data, such as badge readers, thumbprint or facial recognition or proximity sensors. Card readers are evolving from Wiegand to OSDP and BACnet technologies.

How do these trends affect cabling for security and other related systems today? As the security industry has evolved, so have security cables at Remee Wire & Cable. To meet today’s security and alarm cabling requirements, Remee offers any and all types of cabling needed. Take a look at our comprehensive Vigilance™ Series.

Vigilance™ Security, Video, Alarm & Control Cables for Reliable Performance

Remee Wire & Cable provides cabling solutions for any alarm, security and control requirement:

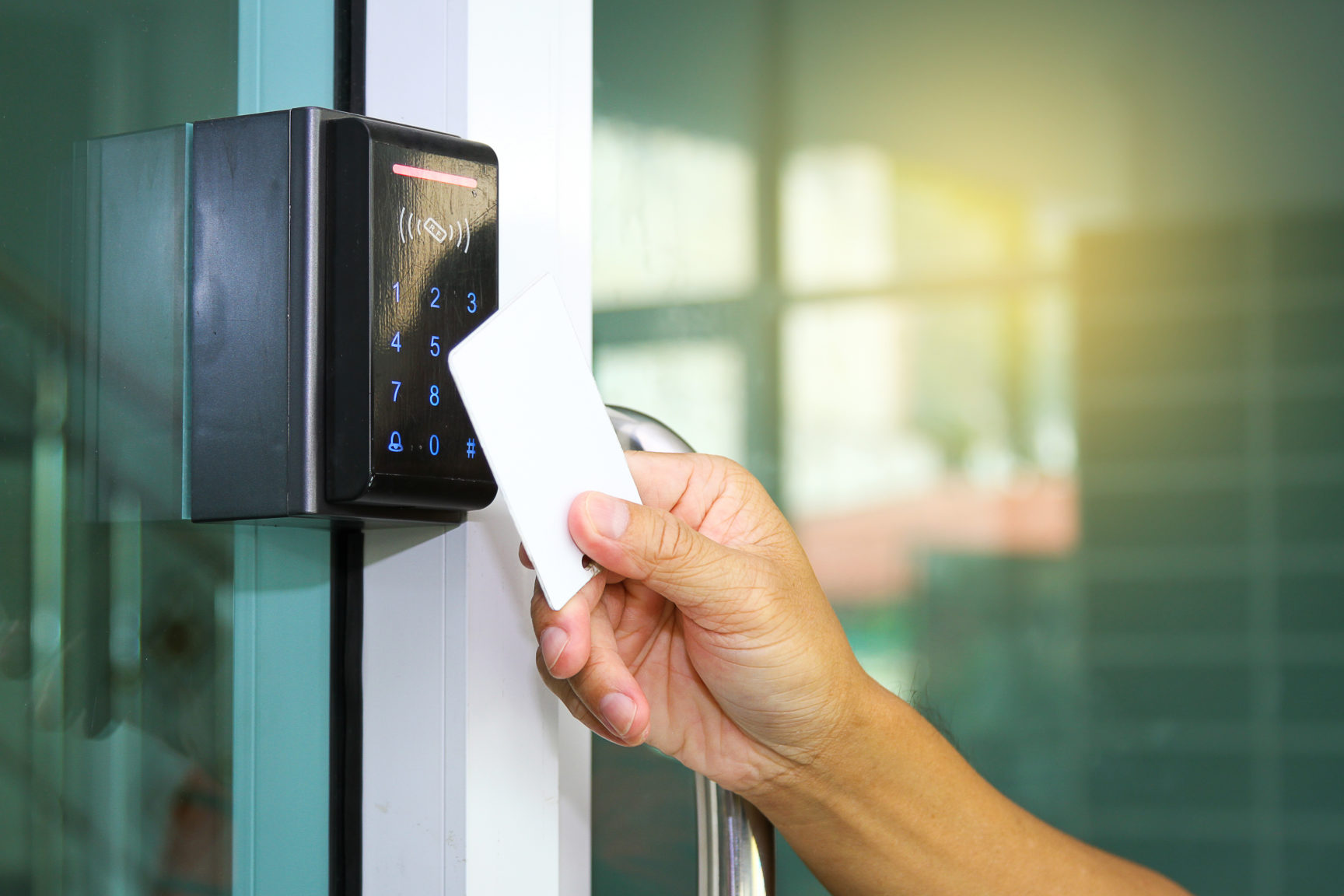

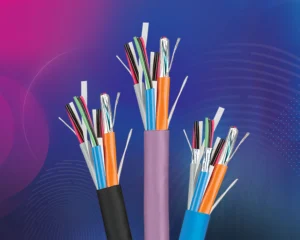

Vigilance™ Access Control Cables

These newly engineered security cables from Remee have been designed specifically for access control technologies, such as Wiegand, the Open Supervised Device Protocol (OSDP) specification, and BACnet (a communication protocol for Building Automation and Control networks).

For Weigand Systems (Meets the Wiegand security cable standard):

  • Wiegand Access Control Cables – These Plenum- and Riser-rated composite cables each include a 22AWG 3-Pair foil shielded component for protection against EMI. The Plenum-rated version features a Remguard Plenum Polymer jacket, while the Riser-rated version includes a PVC jacket. Meets the Wiegand security cable standard. PART NOs. 725901 (CMP) and R00907 (CMR)
  • Direct Burial Composite for Wet Locations – this OSP and Riser-rated composite cable features four components cabled together with a water blocking tape and overall UV-resistant PVC jacket, suitable for wet locations. Meets the Wiegand security cable standard. PART NO. R00907WBT
  • All-Shielded Composite Cable – This new Plenum-rated Access Control composite cable features a foil shield for each of the four component cables for maximum EMI protection in high noise environments. Meets the Wiegand security cable standard. PART NO. 725914

For OSDP & Encrypted Systems (Meets the OSDP security cable standard):

  • OSDP / RS-485 Plenum Composite Cable with 2 Shielded Pair – Features a 22AWG 2-Pair Low Capacitance shielded component as one of four components. An overall foil shield is provided on this component for use in high EMI environments. Features Remguard jacket for plenum applications (CMP). PART NO. 725953
  • OSDP / RS-485 Plenum Composite Cable with 1 Shielded Pair – Features a 22AWG single pair and two 22AWG conductors as one of four components. The single pair features a foil shield for use in high EMI environments. Includes a Remguard jacket for plenum applications (CMP). PART NO. 725937
  • OSDP Plenum Composite Cable with 1 Shielded Pair for Card Reader Only – Plenum rated cable with two components: one pair 22AWG foil-shielded and 2C 18AWG unshielded. Features Remguard jacket (CMP). PART NO. 725936

Plenum Hybrid for OSDP or Wiegand Systems:

  • Four Component Plenum-rated Composite Cable – Features one component for reader (2pr 22AWG shielded + 2C 18AWG unshielded), 2 additional components each with 4C 22AWG unshielded, and 1 component with 2C 16AWG unshielded. Features Remguard jacket (CMP).

CASE STUDY: Remee Delivers Cost-Saving Cabling Solutions for Warehouse Access Control Systems

Vigilance™ Security Cables

  • Standard Plenum-rated Security Cables – The 725 Series cable offering for 300V control, instrumentation and security cable installations features Remguard Plenum Polymer insulation and jackets over stranded copper conductors. Shielded and unshielded versions are offered with a selection of AWG sizes and number of conductors.
  • Standard Riser-rated Security Cables – The 900 and R00 Series are Riser-rated versions of most of the 725 Series. With PVC insulation and jackets, these riser cables are more flexible than their plenum-rated cousins. They include stranded copper conductors and a choice of shielded or unshielded versions. Also included in this series are several water blocked cables for Direct Burial use.

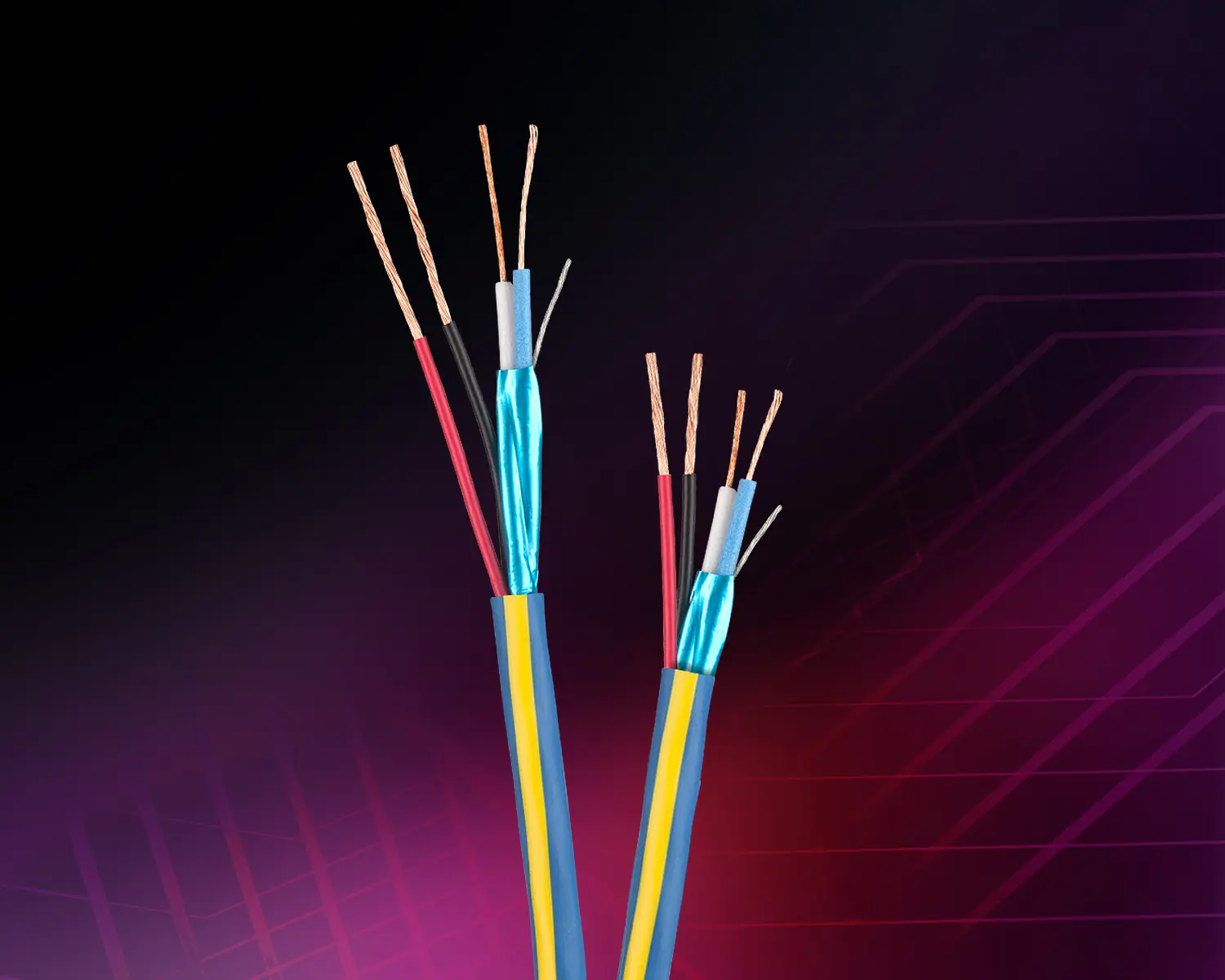

Vigilance™ Lighting and Shade Control Cables

Remee’s control cables for lighting and window shade controls feature special constructions and bundled cables.

  • Lighting & Control – The LUG and LUQ Series composite cables include a data component and a power component. They have been designed for use with Lutron, Crestron, Control4, Elan, AMX or similar automation control systems. Choose from several AWG sizes in various multi-conductor and multi-pair configurations with different shield combinations. Cables are Plenum-rated with Remguard Plenum Polymer jackets or Riser-rated with PVC jackets.

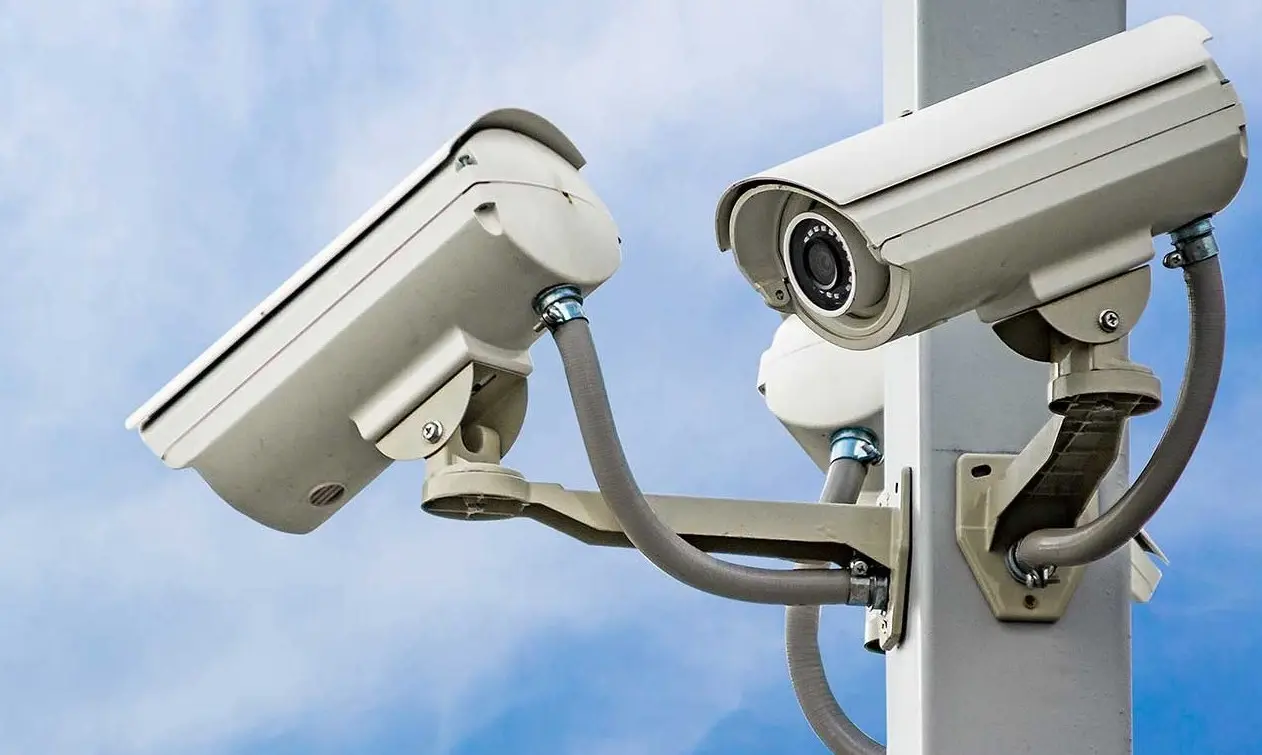

Vigilance™ Video / CCTV Security & Alarm Cables

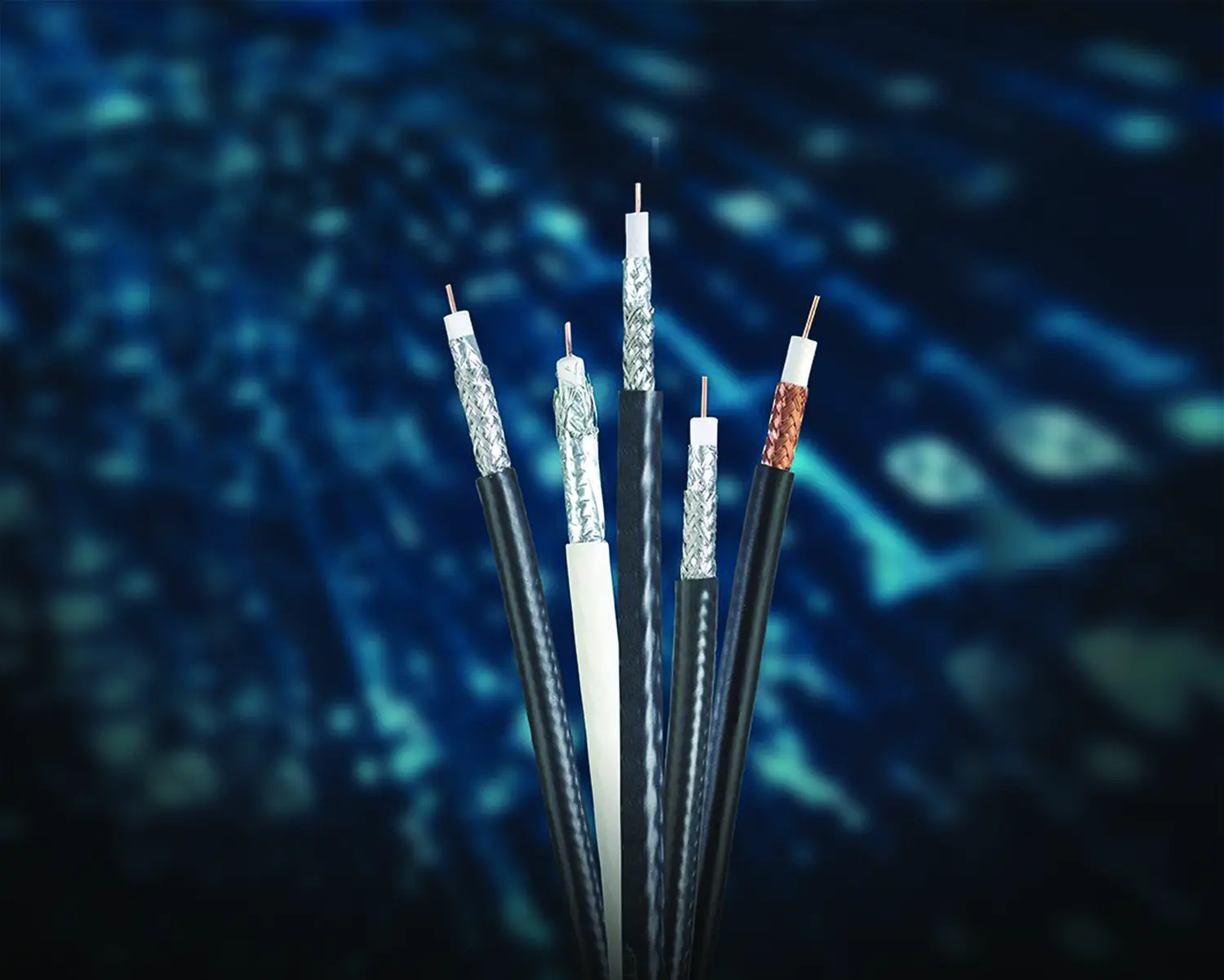

  • Video / CCTV Cables – Remee offers a selection of RG59/U Composite Video coax cables with braid shields, as well as Siamese versions with an added power pair, in both Plenum-rated and Riser-rated versions. Water-blocking tape is available for direct burial use on OSP braid-shielded coax cables, with or without a power pair. The Siamese direct burial version with the power pair features both the coax and the power pair bundled under an overall outer PVC jacket.

Vigilance™ Standard Fire Alarm Cable

  • Standard Plenum-rated Fire Alarm Cables – The 760 Series fire alarm cables feature solid conductors and are rated FPLP. Also see our full line of Fire Alarm Cables which includes cables meeting the stringent New York Local Law 39 (LL39) requirements.
  • Standard Riser-rated Fire Alarm Cables – The R00 Series fire alarm cables feature solid conductors and are rated FPLR. Also see our full line of Fire Alarm Cables which includes cables meeting the stringent New York Local Law 39 (LL39) requirements.

Vigilance™ Thermostat Control Cables

  • Thermostat Control Series – This line of 18 AWG control cables features a selection of 2, 3, 4, 5, 6, 8, and 10 solid bare copper conductors. All cables are unshielded, with choice of plenum and non-plenum rated versions.

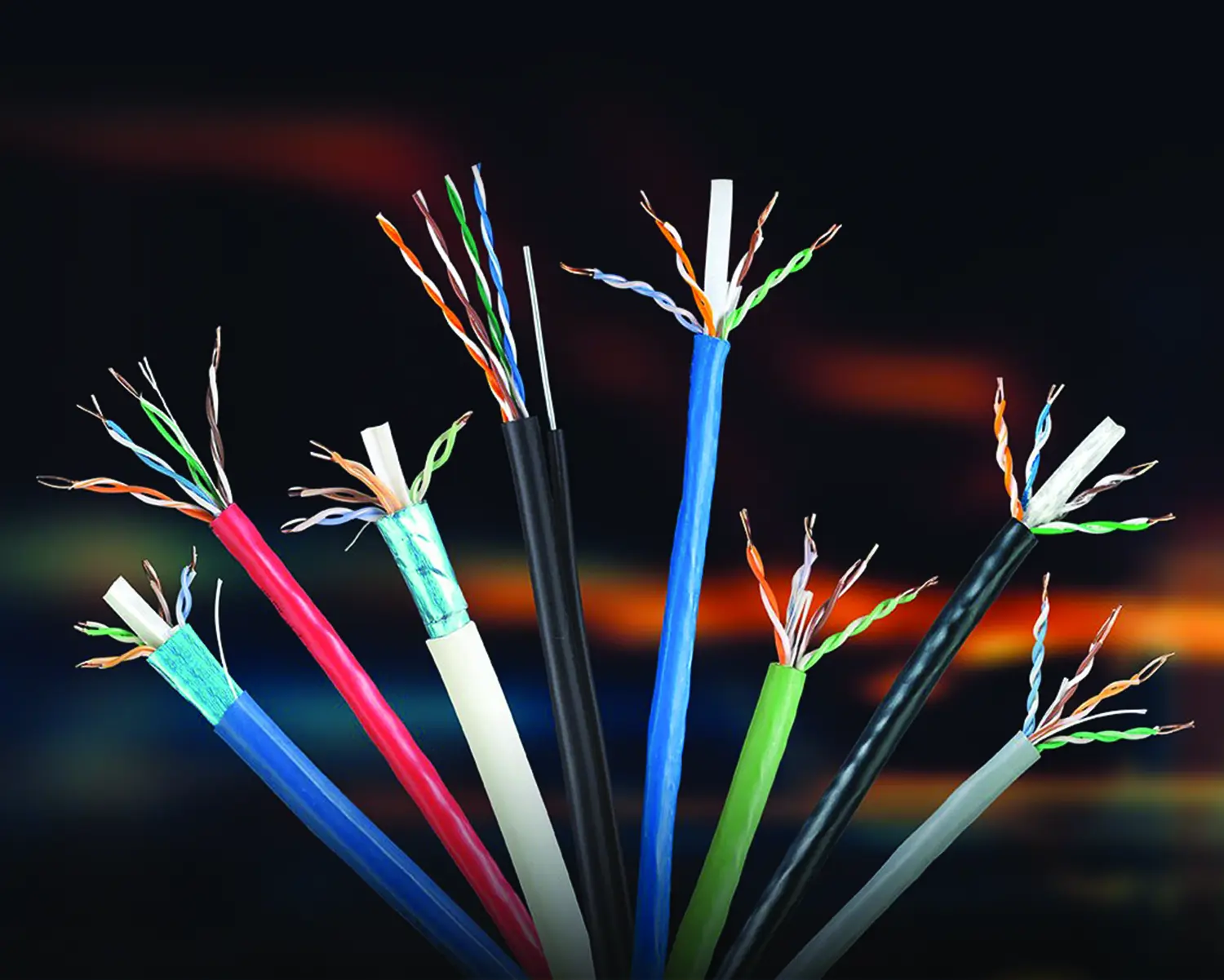

Remee Ethernet Network Cable

Also see our LAN & Premise Cables to connect security devices to networks and the Internet.




Important Remee Features:

  • Flexibility – Cables with stranded conductors provide high flexibility to ease installation in walls or ceilings; Remee uses only solid copper strands – no aluminum-coated copper
  • Stripability – Remee PVC and LSPVC jackets are easy to peel or strip away from conductors
  • Interference Protection – All cables with foil shields include 100% coverage to prevent signal interference or degradation from egress or ingress
  • Water-Blocking – Remee cables with water-swellable tape or water-blocking compounds provide a moisture barrier for direct burial or other applications where the cable is exposed to water or moisture
  • Bundling – Remee bundled and composite cables allow multiple signals to traverse over more than one cable under one overall jacket; this simplifies installation, with only one cable needing to be pulled for installation, rather than multiple cables
  • Jacket Options – Remee offers several jacketing options:
    • RemGuard Polymer jackets for plenum-rated cables with low flammability and low smoke
    • LSZH (Low Smoke Zero Halogen) jackets made of thermoplastic or thermoset compounds that emit limited smoke and no toxic halogen gasses
    • Ask us about other polyolefin compounds to suit your application

Installation Tips for Video Surveillance

IPVM is a leading authority on video surveillance with a wealth of information, research, reports and tools.

Tools

Tips, Tutorials & Articles

Standards & Certifications

Remee cables meet the applicable ETL and CSA requirements. All Remee cable products are manufactured under ISO 9001 certification.

Modified Standard & Custom Security, Alarm & Control Cable Options

Mix it up the way you need it, with modifications to our standard cables or to obtain custom made cables.

  • Alternate jacket materials – PVC, RemGuard Plenum Polymer, LSZH
  • Additional Vigilance™ Access Control Cable designs to accommodate other devices
  • Stranded tin copper conductors
  • Varying conductor sizes – from 25 AWG to 12 AWG, solid or stranded
  • Oxygen-free copper
  • Different shielding configurations
  • Non-standard colored jackets for circuit identification
  • Plenum jacketing on non-standard cables
  • Bundled cable
  • Other requirements you may have

Standard & Other Available Security, Alarm & Control Cables

Choose from the cable options in the following table. Most items are in stock, but check with Remee for availability. Part numbers link to cable spec sheets.

Applications

Our full range of security, alarm and control cables are suitable for a wide range of applications, including (but not limited to):

  • ACCESS CONTROL
  • BURGLAR AND OTHER ALARM SYSTEMS
  • ANNUNCIATORS
  • CCTV / IP CAMERA SURVEILLANCE
  • VIDEO ANALYTICS
  • BUILDING & HOME AUTOMATION
  • SOUND & INTERCOM SYSTEMS
  • BIOMETRICS
  • POWER-LIMITED CONTROLS
  • LIGHTING AND SHADE CONTROLS
  • THERMOSTAT CONTROLS
  • DOOR HARDWARE
  • FIRE ALARM (see Fire Alarm Cables)

Vigilance™ Plenum-rated Security Cables

Product Type Product Description Rating Remee Part No. & Data Sheet
12 Gauge Stranded 12-2 Unshielded CMP 725120
12 Gauge Stranded 12-2 Shielded CMP 725121
14 Gauge Stranded 14-2 Unshielded CMP 725140
14 Gauge Stranded 14-2 Shielded CMP 725141
14 Gauge Stranded 14-4 Unshielded CMP 725146
16 Gauge Stranded 16-2 Unshielded CMP 725160
16 Gauge Stranded 16-2 Shielded CMP 725161
16 Gauge Stranded 16-4 Unshielded CMP 725164
16 Gauge Stranded 16-4 Shielded CMP 725163
18 Gauge Stranded 18-2 Unshielded CMP 725180
18 Gauge Stranded 18-2 Shielded CMP 725181
18 Gauge Stranded 18-3 Unshielded CMP 725182
18 Gauge Stranded 18-4 Unshielded CMP 725184
18 Gauge Stranded 18-4 Shielded CMP 725185
18 Gauge Stranded 18-6 Unshielded CMP 725186
18 Gauge Stranded 18-6 Shielded CMP 725187
18 Gauge Stranded 18-8 Unshielded CMP 725188
18 Gauge Stranded 18-8 Shielded CMP 725189
22 Gauge Stranded 22-2 Unshielded CMP 725220
22 Gauge Stranded 22-2 Shielded CMP 725221
22 Gauge Stranded 22-4 Unshielded CMP 725224
22 Gauge Stranded 22-4 Shielded CMP 725223
22 Gauge Stranded 22-4 Shielded CMP 725227
22 Gauge Stranded 22-6 Unshielded CMP 725228
22 Gauge Stranded 22-6 Shielded CMP 725228S

Vigilance™ Riser-rated Security Cables

Product Type Product Description Rating Remee Part No. & Data Sheet
16 Gauge Stranded 16-2 Shielded CMR 900902
16 Gauge Stranded 16-3 Shielded CMR 900903
16 Gauge Stranded 16-4 Unshielded CMR R001023R
18 Gauge Stranded 18-2 Unshielded CMR R001006R
18 Gauge Stranded 18-2 Shielded CMR 900912R
18 Gauge Stranded 18-3 Shielded CMR 900913
18 Gauge Stranded 18-4 Shielded CMR 900914
18 Gauge Stranded 18-6 Shielded CMR 900916
18 Gauge Stranded 18-4 Unshielded CMR R001008R
18 Gauge Stranded 18-6 Unshielded CMR R0010186
22 Gauge Stranded 22-2 Unshielded CMR R001032
22 Gauge Stranded 22-4 Unshielded CMR R001034
22 Gauge Stranded 22-2 Shielded CMR 900942
22 Gauge Stranded 22-4 Shielded CMR 900944
22 Gauge Stranded 22-6 Unshielded CMR R001036
22 Gauge Stranded 22-6 Shielded CMR 900946
22 Gauge Stranded 22-8 Shielded CMR 900948
18 Gauge Stranded – Direct Burial 18-2 Unshielded w/ Water Blocking Tape PE Jacket OSP R001006WBTPOLY
18 Gauge Stranded – Direct Burial 18-2 Shielded w/ Water Blocking Tape PE Jacket OSP 900912WBTPOLY
18 Gauge Stranded – Direct Burial 18-4 Unshielded w/ Water Blocking Tape PE Jacket OSP R001008WBTPOLY
18 Gauge Stranded – Direct Burial 18-6 Shielded w/ Water Blocking Tape PE Jacket OSP 900916WBTPOLY

Vigilance™ Security & Alarm Cables – Video / CCTV Series

Product Type Product Description Rating Remee Part No. & Data Sheet
Composite Video with Power Pair RG59/U with 18/2 Siamese CMP 725526
RG59 - CCTV RG59/U CCA Braid CMP 725102
Composite Video with Power Pair RG59/U with 18/2 Siamese CMR R001535RC
RG59 - CCTV RG59/U CCA Braid CMR R001510R
Composite Video with Power Pair RG59/U with 18/2 Siamese Water Blocking Tape PE Jacket OSP R001539WBPOLY
RG59 - CCTV Direct Burial RG59/U CCA Braid Water Blocking Tape PE Jacket OSP R001510WBTPOLY

Vigilance™ Standard Plenum-rated Fire Alarm Cables

Product Type Product Description Rating Remee Part No. & Data Sheet
12 Gauge Solid 12-2 Shielded Plenum FPLP 760121
12 Gauge Solid 12-2 Unshielded Plenum FPLP 760120
14 Gauge Solid 14-2 Unshielded Plenum FPLP 760140
14 Gauge Solid 14-2 Shielded Plenum FPLP 760141
14 Gauge Solid 14-4 Unshielded Plenum FPLP 760144
14 Gauge Solid 14-6 Unshielded Plenum FPLP 760146
16 Gauge Solid 16-2 Unshielded Plenum FPLP 760160
16 Gauge Solid 16-2 Shielded Plenum FPLP 760161
16 Gauge Solid 16-4 Unshielded Plenum FPLP 760164
18 Gauge Solid 18-2 Unshielded Plenum FPLP 760180
18 Gauge Solid 18-2 Shielded Plenum FPLP 760181
18 Gauge Solid 18-4 Shielded Plenum FPLP 760185
18 Gauge Solid 18-4 Unshielded Plenum FPLP 760184

Vigilance™ Standard Riser-rated Fire Alarm Cables

Product Type Product Description Rating Remee Part No. & Data Sheet
14 Gauge Solid 14-2 Unshielded Non-Plenum FPLR R00305
14 Gauge Solid 14-2 Shielded Non-Plenum FPLR R00306
14 Gauge Solid 14-4 Shielded Non-Plenum FPLR R00308
16 Gauge Solid 16-2 Unshielded Non-Plenum FPLR R00301
16 Gauge Solid 16-2 Shielded Non-Plenum FPLR R00303
16 Gauge Solid 16-4 Unshielded Non-Plenum FPLR R00302
18 Gauge Solid 18-2 Unshielded Non-Plenum FPLR R00293
18 Gauge Solid 18-2 Shielded Non-Plenum FPLR R00310
18 Gauge Solid 18-4 Unshielded Non-Plenum FPLR R00294
18 Gauge Solid 18-4 Shielded Non-Plenum FPLR R00315
18 Gauge Solid 18-6 Unshielded Non-Plenum FPLR R00296
22 Gauge Solid 22-4 Unshielded Non-Plenum FPLR R00404

Vigilance™ Lighting, Shade Control Cables

Product Type Product Description Rating Remee Part No. & Data Sheet
Lutron-GRN (Plenum) 22/1pr SH (Data) + 18/2c NS (Power) CL3P LUGRX346SP
Lutron-QSC (Plenum) 22/1pr SH (Data) + 16/2c NS (Power) CL3P LUQSCP
Lutron-RBL (Plenum) 22/1pr SH (Data) + 12/2c NS (Power) + 18/1c (Sensor) CL3P LUGRX46LP
Lutron-GRN (Riser) 22/1pr SH (Data) + 18/2c NS (Power) CL3R LUGRX346S
Lutron-QSC (Riser) 22/1pr SH (Data) + 16/2c NS (Power) CL3R LUQSC
Lutron-RBL (Riser) 22/1pr SH (Data) + 12/2c NS (Power) + 18/1c (Sensor) CL3R LUGRX46L

Vigilance™ Thermostat Control Cables

Product Type Product Description Rating Remee Part No. & Data Sheet
18 Gauge Solid 18 Gauge Solid CL2 182TH - Call Remee for Details
18 Gauge Solid 18 Gauge Solid CL2 183TH - Call Remee for Details
18 Gauge Solid 18 Gauge Solid CL2 184TH - Call Remee for Details
18 Gauge Solid 18 Gauge Solid CL2 185TH - Call Remee for Details
18 Gauge Solid 18 Gauge Solid CL2 186TH - Call Remee for Details
18 Gauge Solid 18 Gauge Solid CL2 188TH - Call Remee for Details
18 Gauge Solid 18 Gauge Solid CL2 1810TH - Call Remee for Details
18 Gauge Solid 18 Gauge Solid CL3P 182THPL1N
18 Gauge Solid 18 Gauge Solid CL3P 183THPL1N
18 Gauge Solid 18 Gauge Solid CL3P 184THPT1N
18 Gauge Solid 18 Gauge Solid CL3P 185THPT1N
18 Gauge Solid 18 Gauge Solid CL3P 186THPT1N
18 Gauge Solid 18 Gauge Solid CL3P 188THPT1N
18 Gauge Solid 18 Gauge Solid CL3P 1810THPT1N

Vigilance™ Access Control Composite Cables

Product Type Product Description Rating Remee Part No. & Data Sheet
OSDP / RS-485 (22/1pr SH + 18/2c NS Reader) Combo 18/4c NS, 22/2c SH + 18/2c NS, 22/4c NS, 22/2c NS, Remguard jkt CMP 725937
OSDP / RS-485 (22/2pr SH Reader) Combo 18/4c NS, 22/2pr SH, 22/4c NS, 22/2c NS, Remguard jkt CMP 725953
OSDP or Wiegand Hybrid (Plenum) 22/2pr SH + 18/2c NS, 22/4c NS, 22/4c NS, 16/2c NS, Remguard jkt CMP 726931
OSDP Card Reader Only (Plenum) 22/1pr SH, 18/2c NS, Remguard jkt CMP 725936
Wiegand (Plenum) 22/3pr SH, 22/4c NS, 22/2c, NS & 18/4c NS, Remguard jkt CMP 725901
Wiegand (Riser) 22/3pr SH, 22/4c NS, 22/2c, NS & 18/4c NS, PVC jkt CMR R00907
Wiegand (Wet Location) 22/3pr SH, 22/4c NS, 22/2c, NS & 18/4c NS, PVC jkt OSP, CMR R00907WBT
Wiegand (All Shielded, Plenum) 22/3pr SH, 22/4c SH, 22/2c SH & 18/4 SH, Remguard jkt CMP 725914

Vigilance™ Amazon Distribution Center Security Cables

Product Type Product Description Rating Remee Part No. & Data Sheet
Amazon Access Control (Bundle) 2-Card Reader Location Cable CMP 4722A-AMZ-2CR
Amazon Access Control (Bundle) 1-Card Reader Location Cable CMP 4722B-AMZ-1CR
Amazon Access Control (Bundle) Emergency Exit Door CMP 5465-AMZ-EXD
Amazon Access Control (Component) 22/2c NS - Door Contact CMP 5333-DC
Amazon Access Control (Component) 18/2c NS - Electric Lock CMP 5333-EL
Amazon Access Control (Component) 20/2c NS - Horn CMP 5333-HN
Amazon Access Control (Component) 20/2c NS + 22/2c NS - RX and Motion Detector CMP 5333-RX-MD
Amazon Access Control (Component) 22/1pr SH + 22/2c NS + 20/2c NS - Card Reader CMP 5333-SI
How Can Remee Help?

Wire & Cable with Personal Service

Request for Information/Quote

Whether you have an RFI, RFQ, or RFP, let us know here and we will respond quickly.

Ask a Cable Expert

Ask our team any question you may have on selecting or designing the right cable for your application.

Talk to a Remee Exec

Our executive team is readily accessible to you.  Use this form to express any information or question to our management team.

Customize a Cable

Want us to modify a standard cable or custom design one for you? Just complete this form and we promise to have a quote to you within 48 hours.

Contact Us

Cannot find what you are looking for?

    Newsletter Sign-up
