Description

Renewable energy sources, specifically solar and wind farms, have very exact cabling requirements.  Renewables™ by Remee provides a variety of cables to assist you with your renewable energy installation or maintenance. Remee’s experience in manufacturing cables for use in many types of harsh environments provides the assurances you need to maintain signal integrity and continued performance.

For Wind Towers, Remee provides cables for blade grounding, cabling from the nacelle to the intermediary collection point, and collection cable from the many intermediary collection boxes to the substation.

For Solar Power, Renewables™ by Remee include Photovoltaic (PV) Cables for interconnecting solar arrays and Collection Cables to connect the panels with intermediary collection points. Medium Voltage Cables in copper or aluminum transmit power to substations.

Renewables™ by Remee

Remee provides the following cables for use in Solar and Wind farms:

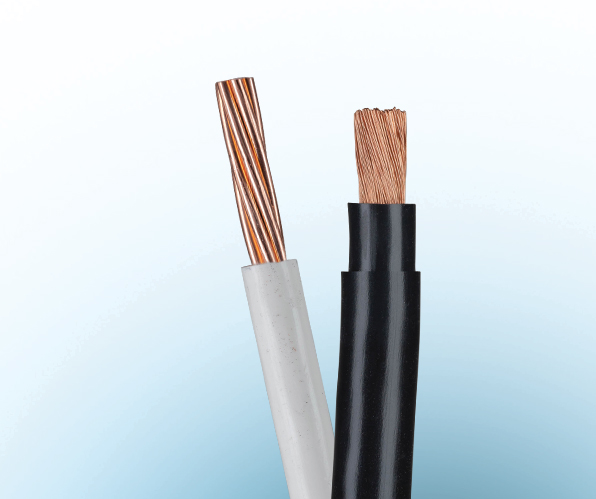

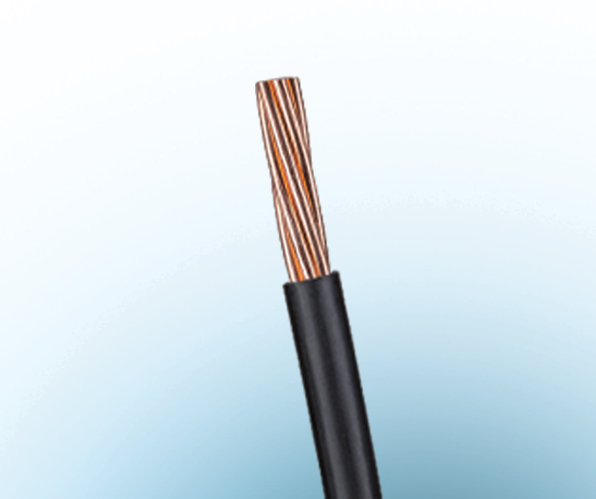

  • Solar Array Cables – Copper PV wire rated at 2000V with cross-linked polyethylene (XLPE) jackets for durability.

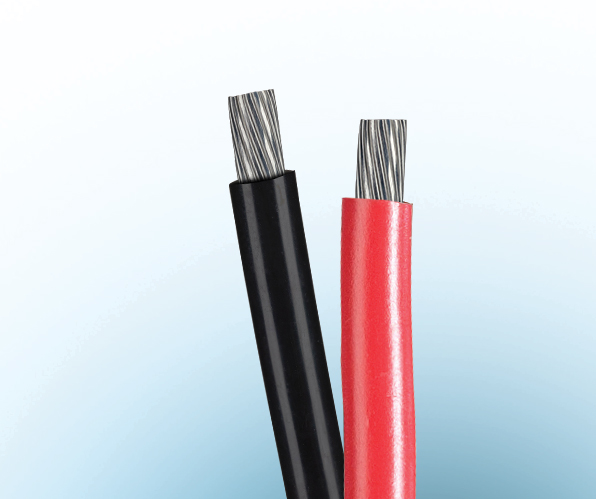

  • Collection Cables – Aluminum PV wire rated at 2000V, also with cross-linked polyethylene (XLPE) jackets for durability.

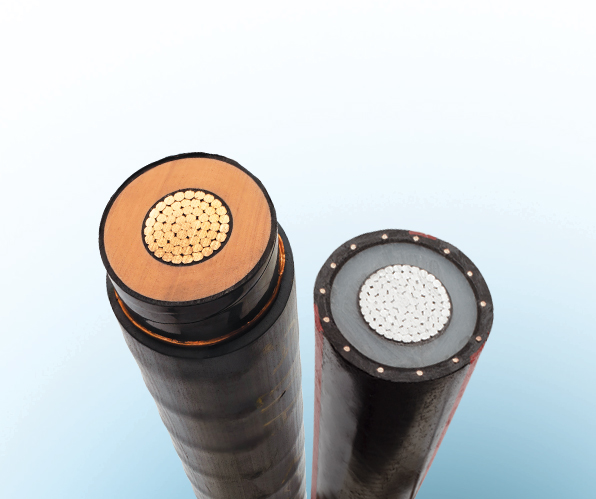

  • Medium Voltage Cables – Both the Aluminum and Copper MV Series are rated 35kv; they feature tree-retardant cross-linked polyethylene (TR-XLPE) insulation and a cross-linked polyethylene (XLPE) jacket. The cable is designed for use in three-phase systems with voltage not exceeding 35,000 volts phase to phase and conductor temperatures not exceeding 105°C for normal operation. Suitable for direct burial.

    A “DISCHARGE-FREE” design concept underpins the manufacturing of this cable. Conductor, shield, insulation, and insulation shield are extruded simultaneously over the conductor by using triple extrusion and dry-curing technology. The insulation shield is designed to be strippable. Double-helix compatible water-blocking yarn is used on all conductors. Water-swellable tape is applied over the insulation shield.

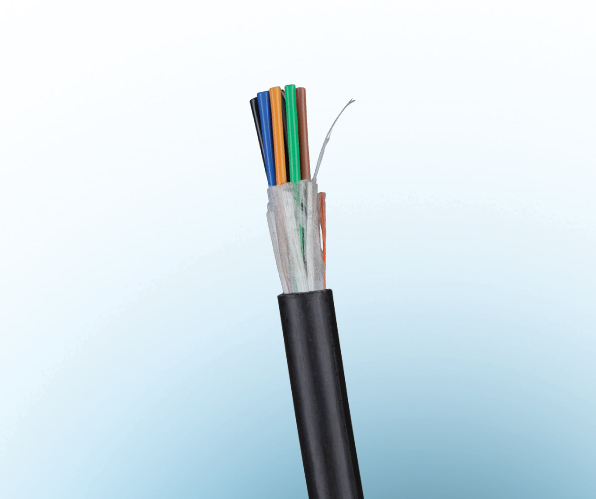

  • Fiber Optic Cables – Interference-free Fiber Optic cables are available with loose tube construction featuring Remee’s gel-free AquaLock™ design; available with and without armor. Fiber optic cables in duct are available upon request.

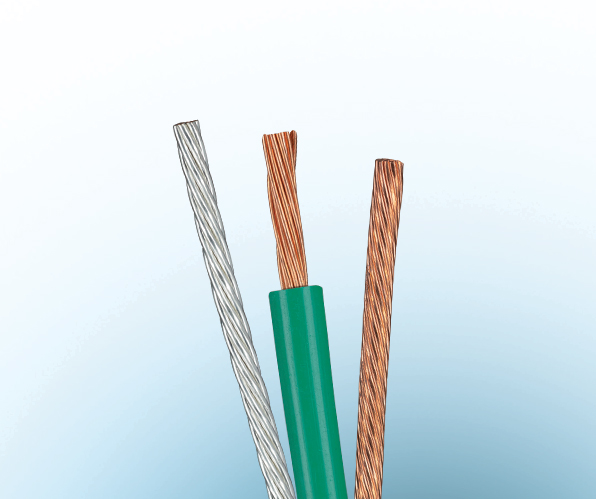

  • Bare Stranded Copper Ground Wire – Common sizes are available upon request.



Standards & Certifications

The MV cables will comply with all applicable requirements of the following standards:

  • ICEA S-94-649 – Standard for Concentric Neutral Cables Rated 5-46 kV
  • AEIC CS8 – Specification for Extruded Dielectric, Shielded Power Cables Rated 5-46 kV
  • UL1072 – MV90 and MV105 – Standard for Medium-Voltage Power Cables
  • CSA 68.10 – Shielded Power Cable for Commercial and Industrial Applications, 5-46 kV

All Remee cable products are manufactured under ISO 9001 certification. MV cable compounds are handled and loaded in a Class 10000 clean room. An optical pellet analyzer is used by the supplier to perform 100% pellet inspection.

Standard Cables & Other Available Renewables™ by Remee

Choose from the standard cable options in the Part Number Table below. Check with Remee for availability. Part numbers link to their respective cable spec sheet.

Important Remee Features

  • Flexibility – Cables with stranded conductors provide greater flexibility and ease when installing in walls or ceilings
  • Water-Blocking – Water-swellable tape, water-blocking compounds or AquaLock™ dry tube technology are options at Remee to create a moisture barrier for direct burial or other applications where the cable is exposed to water or moisture
  • Parallelling – Two single conductor PV wires spooled on one reel
  • Jacket Options – Remee offers EPR and XLPE as jacketing options for MV cables

Applications

Renewables™ by Remee offer reliable solutions to interconnect devices and equipment in wind and solar farms.

Renewables™ by Remee provide connections between:

SOLAR PANELS AND ARRAYS
SOLAR PANELS TO COLLECTION EQUIPMENT

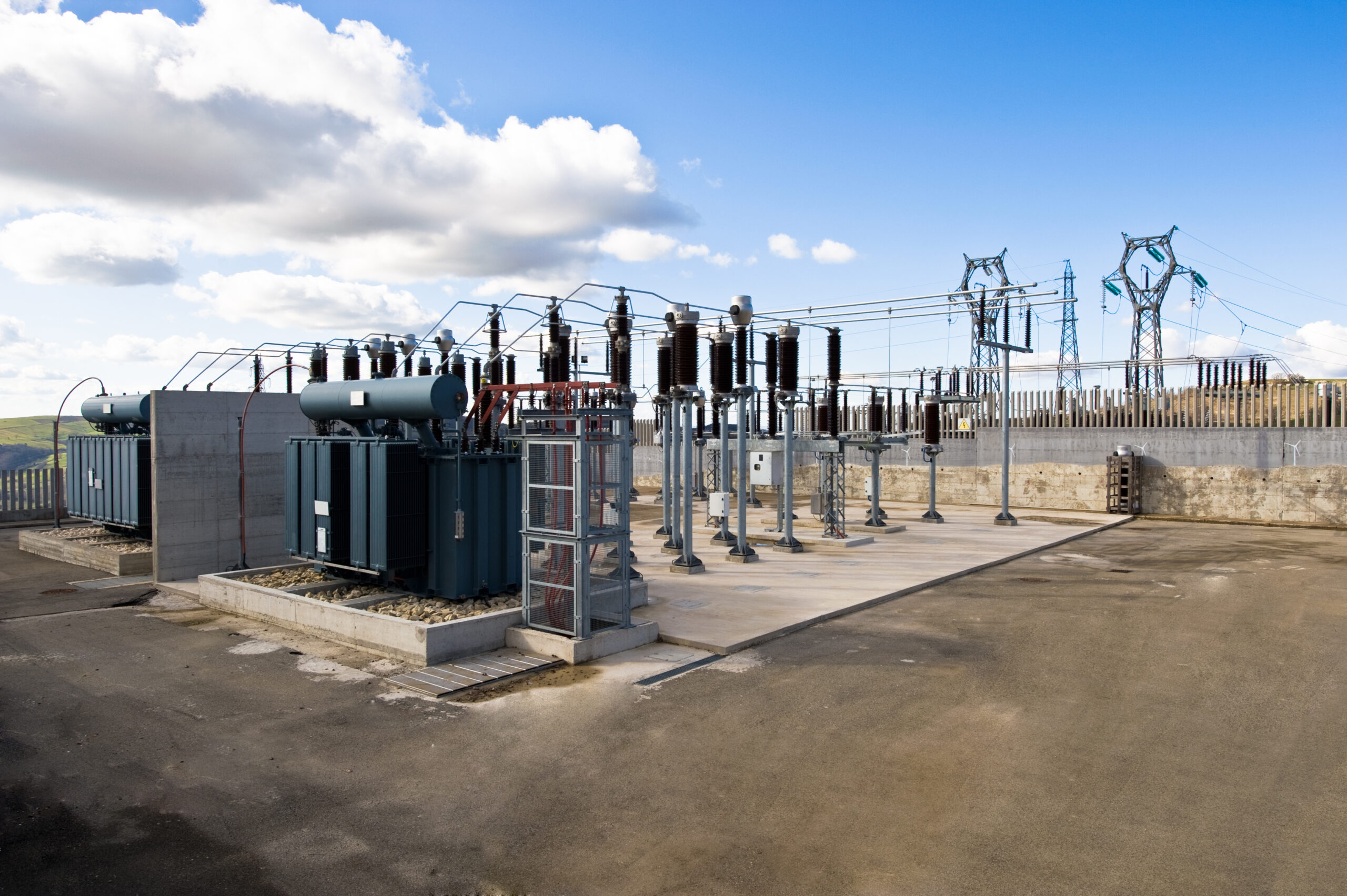

SOLAR POWER COLLECTION EQUIPMENT TO SUBSTATIONS
NACELLE EQUIPMENT TO WIND POWER COLLECTION EQUIPMENT
WIND POWER COLLECTION EQUIPMENT TO SUBSTATIONS

Warranties
Ask An Expert

Renewables™️ by Remee

Solar Array PV (Photovoltaic) Cable

Product Type Product Description Rating Remee Part No. & Data Sheet
Copper PV Wire, 1kV/2kV #12, 19 Str BC, NS, XLPE jkt UL 44, UL 854, UL 4703, UL 1581, CSA C.22 .2 No. 271 PV12XXBCMXXX
Copper PV Wire, 1kV/2kV #10, 19 Str BC, NS, XLPE jkt UL 44, UL 854, UL 4703, UL 1581, CSA C.22 .2 No. 271 PV10XXBCMXXX
Copper PV Wire, 1kV/2kV #8, 19 Str BC, NS, XLPE jkt UL 44, UL 854, UL 4703, UL 1581, CSA C.22 .2 No. 271 PV08XXBCMXXX
Copper PV Wire, 1kV/2kV #6, 19 Str BC, NS, XLPE jkt UL 44, UL 854, UL 4703, UL 1581, CSA C.22 .2 No. 271 PV06XXBCMXXX

Collection PV (Photovoltaic) Cable

Product Type Product Description Rating Remee Part No. & Data Sheet
Aluminum PV Wire, 1kV/2kV #8, 7 Str, NS, XLPE jkt UL 44, UL 854, UL 4703 PV00807AL
Aluminum PV Wire, 1kV/2kV #6, 7 Str, NS, XLPE jkt UL 44, UL 854, UL 4703 PV00607AL
Aluminum PV Wire, 1kV/2kV #4, 7 Str, NS, XLPE jkt UL 44, UL 854, UL 4703 PV00407AL
Aluminum PV Wire, 1kV/2kV #2, 7 Str, NS, XLPE jkt UL 44, UL 854, UL 4703 PV00207AL
Aluminum PV Wire, 1kV/2kV #1, 19 Str, NS, XLPE jkt UL 44, UL 854, UL 4703 PV00119AL
Aluminum PV Wire, 1kV/2kV 1/0, 19 Str, NS, XLPE jkt UL 44, UL 854, UL 4703, IEEE 1202 FT4 (for sizes 1/0 and larger) PV01019AL
Aluminum PV Wire, 1kV/2kV 2/0, 19 Str, NS, XLPE jkt UL 44, UL 854, UL 4703, IEEE 1202 FT4 (for sizes 1/0 and larger) PV02019AL
Aluminum PV Wire, 1kV/2kV 3/0, 19 Str, NS, XLPE jkt UL 44, UL 854, UL 4703, IEEE 1202 FT4 (for sizes 1/0 and larger) PV03019AL
Aluminum PV Wire, 1kV/2kV 4/0, 19 Str, NS, XLPE jkt UL 44, UL 854, UL 4703, IEEE 1202 FT4 (for sizes 1/0 and larger) PV4019AL
Aluminum PV Wire, 1kV/2kV 250, 37 Str, NS, XLPE jkt UL 44, UL 854, UL 4703, IEEE 1202 FT4 (for sizes 1/0 and larger) PV25037AL
Aluminum PV Wire, 1kV/2kV 300, 37 Str, NS, XLPE jkt UL 44, UL 854, UL 4703, IEEE 1202 FT4 (for sizes 1/0 and larger) PV30037AL
Aluminum PV Wire, 1kV/2kV 350, 37 Str, NS, XLPE jkt UL 44, UL 854, UL 4703, IEEE 1202 FT4 (for sizes 1/0 and larger) PV35037AL
Aluminum PV Wire, 1kV/2kV 400, 37 Str, NS, XLPE jkt UL 44, UL 854, UL 4703, IEEE 1202 FT4 (for sizes 1/0 and larger) PV40037AL
Aluminum PV Wire, 1kV/2kV 500, 37 Str, NS, XLPE jkt UL 44, UL 854, UL 4703, IEEE 1202 FT4 (for sizes 1/0 and larger) PV50037AL
Aluminum PV Wire, 1kV/2kV 600, 61 Str, NS, XLPE jkt UL 44, UL 854, UL 4703, IEEE 1202 FT4 (for sizes 1/0 and larger) PV60061AL
Aluminum PV Wire, 1kV/2kV 700, 61 Str, NS, XLPE jkt UL 44, UL 854, UL 4703, IEEE 1202 FT4 (for sizes 1/0 and larger) PV70061AL
Aluminum PV Wire, 1kV/2kV 750, 61 Str, NS, XLPE jkt UL 44, UL 854, UL 4703, IEEE 1202 FT4 (for sizes 1/0 and larger) PV75061AL
Aluminum PV Wire, 1kV/2kV 1000, 61 Str, NS, XLPE jkt UL 44, UL 854, UL 4703, IEEE 1202 FT4 (for sizes 1/0 and larger) PV100061AL

Medium Voltage Cable – AL Series

Product Type Product Description Rating Remee Part No. & Data Sheet
Aluminum MV Cable, 35kV 1/0, 19 Str, TR-XLPE ins, 1/3 CN (14/4), XLPE jkt ICEA S-94-649, AEIC CS8, UL 1072 – MV90 and MV105, CSA 68.10 MV1_0AL0414CUXLPE
Aluminum MV Cable, 35kV 1/0, 19 Str, TR-XLPE ins, 1/2 CN (14/6), XLPE jkt ICEA S-94-649, AEIC CS8, UL 1072 – MV90 and MV105, CSA 68.10 MV1_0AL0614CUXLPE
Aluminum MV Cable, 35kV 1/0, 19 Str, TR-XLPE ins, 2/3 CN (14/8), XLPE jkt ICEA S-94-649, AEIC CS8, UL 1072 – MV90 and MV105, CSA 68.10 MV1_0AL0814CUXLPE
Aluminum MV Cable, 35kV 1/0, 19 Str, TR-XLPE ins, Full (14/12), XLPE jkt ICEA S-94-649, AEIC CS8, UL 1072 – MV90 and MV105, CSA 68.10 MV1_0AL1214CUXLPE
Aluminum MV Cable, 35kV 2/0, 19 Str, TR-XLPE ins, 1/3 CN (14/5), XLPE jkt ICEA S-94-649, AEIC CS8, UL 1072 – MV90 and MV105, CSA 68.10 MV2_0AL0514CUXLPE
Aluminum MV Cable, 35kV 2/0, 19 Str, TR-XLPE ins, 1/2 CN (14/8), XLPE jkt ICEA S-94-649, AEIC CS8, UL 1072 – MV90 and MV105, CSA 68.10 MV2_0AL0814CUXLPE
Aluminum MV Cable, 35kV 2/0, 19 Str, TR-XLPE ins, 2/3 CN (14/10), XLPE jkt ICEA S-94-649, AEIC CS8, UL 1072 – MV90 and MV105, CSA 68.10 MV2_0AL1014CUXLPE
Aluminum MV Cable, 35kV 2/0, 19 Str, TR-XLPE ins, Full (14/15), XLPE jkt ICEA S-94-649, AEIC CS8, UL 1072 – MV90 and MV105, CSA 68.10 MV2_0AL1514CUXLPE
Aluminum MV Cable, 35kV 3/0, 19 Str, TR-XLPE ins, 1/3 CN (14/7), XLPE jkt ICEA S-94-649, AEIC CS8, UL 1072 – MV90 and MV105, CSA 68.10 MV3_0AL0714CUXLPE
Aluminum MV Cable, 35kV 3/0, 19 Str, TR-XLPE ins, 1/2 CN (14/10), XLPE jkt ICEA S-94-649, AEIC CS8, UL 1072 – MV90 and MV105, CSA 68.10 MV3_0AL1014CUXLPE
Aluminum MV Cable, 35kV 3/0, 19 Str, TR-XLPE ins, 2/3 CN (14/13), XLPE jkt ICEA S-94-649, AEIC CS8, UL 1072 – MV90 and MV105, CSA 68.10 MV3_0AL1314CUXLPE
Aluminum MV Cable, 35kV 3/0, 19 Str, TR-XLPE ins, Full (14/19), XLPE jkt ICEA S-94-649, AEIC CS8, UL 1072 – MV90 and MV105, CSA 68.10 MV3_0AL1914CUXLPE
Aluminum MV Cable, 35kV 4/0, 19 Str, TR-XLPE ins, 1/3 CN (14/8), XLPE jkt ICEA S-94-649, AEIC CS8, UL 1072 – MV90 and MV105, CSA 68.10 MV4_0AL0814CUXLPE
Aluminum MV Cable, 35kV 4/0, 19 Str, TR-XLPE ins, 1/2 CN (14/12), XLPE jkt ICEA S-94-649, AEIC CS8, UL 1072 – MV90 and MV105, CSA 68.10 MV4_0AL1214CUXLPE
Aluminum MV Cable, 35kV 4/0, 19 Str, TR-XLPE ins, 2/3 CN (14/16), XLPE jkt ICEA S-94-649, AEIC CS8, UL 1072 – MV90 and MV105, CSA 68.10 MV4_0AL1614CUXLPE
Aluminum MV Cable, 35kV 4/0, 19 Str, TR-XLPE ins, Full (14/23), XLPE jkt ICEA S-94-649, AEIC CS8, UL 1072 – MV90 and MV105, CSA 68.10 MV4_0AL2314CUXLPE
Aluminum MV Cable, 35kV 500, 37 Str, TR-XLPE ins, 1/6 CN (14/9), XLPE jkt ICEA S-94-649, AEIC CS8, UL 1072 – MV90 and MV105, CSA 68.10 MV500AL0914CUXLPE
Aluminum MV Cable, 35kV 500, 37 Str, TR-XLPE ins, 1/3 CN (14/18), XLPE jkt ICEA S-94-649, AEIC CS8, UL 1072 – MV90 and MV105, CSA 68.10 MV500AL1814CUXLPE
Aluminum MV Cable, 35kV 500, 37 Str, TR-XLPE ins, 1/2 CN (14/27), XLPE jkt ICEA S-94-649, AEIC CS8, UL 1072 – MV90 and MV105, CSA 68.10 MV500AL2714CUXLPE
Aluminum MV Cable, 35kV 750, 61 Str, TR-XLPE ins, 1/6 CN (14/14), XLPE jkt ICEA S-94-649, AEIC CS8, UL 1072 – MV90 and MV105, CSA 68.10 MV750AL1414CUXLPE
Aluminum MV Cable, 35kV 750, 61 Str, TR-XLPE ins, 1/3 CN (14/27), XLPE jkt ICEA S-94-649, AEIC CS8, UL 1072 – MV90 and MV105, CSA 68.10 MV750AL2714CUXLPE
Aluminum MV Cable, 35kV 750, 61 Str, TR-XLPE ins, 1/2 CN (12/26), XLPE jkt ICEA S-94-649, AEIC CS8, UL 1072 – MV90 and MV105, CSA 68.10 MV750AL2612CUXLPE
Aluminum MV Cable, 35kV 1000, 61 Str, TR-XLPE ins, 1/12 CN (14/9), XLPE jkt ICEA S-94-649, AEIC CS8, UL 1072 – MV90 and MV105, CSA 68.10 MV1000AL0914CUXLPE
Aluminum MV Cable, 35kV 1000, 61 Str, TR-XLPE ins, 1/9 CN (14/12), XLPE jkt ICEA S-94-649, AEIC CS8, UL 1072 – MV90 and MV105, CSA 68.10 MV1000AL1214CUXLPE
Aluminum MV Cable, 35kV 1000, 61 Str, TR-XLPE ins, 1/6 CN (14/18), XLPE jkt ICEA S-94-649, AEIC CS8, UL 1072 – MV90 and MV105, CSA 68.10 MV1000AL1814CUXLPE
Aluminum MV Cable, 35kV 1000, 61 Str, TR-XLPE ins, 1/3 CN (14/36), XLPE jkt ICEA S-94-649, AEIC CS8, UL 1072 – MV90 and MV105, CSA 68.10 MV1000AL3614CUXLPE
Aluminum MV Cable, 35kV 1000, 61 Str, TR-XLPE ins, 1/2 CN (12/34), XLPE jkt ICEA S-94-649, AEIC CS8, UL 1072 – MV90 and MV105, CSA 68.10 MV1000AL3412CUXLPE
Aluminum MV Cable, 35kV 1250, 91 Str, TR-XLPE ins, 1/12 CN (14/12), XLPE jkt ICEA S-94-649, AEIC CS8, UL 1072 – MV90 and MV105, CSA 68.10 MV1250AL1214CUXLPE
Aluminum MV Cable, 35kV 1250, 91 Str, TR-XLPE ins, 1/9 CN (14/15), XLPE jkt ICEA S-94-649, AEIC CS8, UL 1072 – MV90 and MV105, CSA 68.10 MV1250AL1514CUXLPE
Aluminum MV Cable, 35kV 1250, 91 Str, TR-XLPE ins, 1/6 CN (14/23), XLPE jkt ICEA S-94-649, AEIC CS8, UL 1072 – MV90 and MV105, CSA 68.10 MV1250AL2314CUXLPE
Aluminum MV Cable, 35kV 1250, 91 Str, TR-XLPE ins, 1/3 CN (12/29), XLPE jkt ICEA S-94-649, AEIC CS8, UL 1072 – MV90 and MV105, CSA 68.10 MV1250AL2912CUXLPE
Aluminum MV Cable, 35kV 1250, 91 Str, TR-XLPE ins, 1/2 CN (10/27), XLPE jkt ICEA S-94-649, AEIC CS8, UL 1072 – MV90 and MV105, CSA 68.10 MV1250AL2710CUXLPE
Aluminum MV Cable, 35kV 1500, 91 Str, TR-XLPE ins, 1/8 CN (14/21), XLPE jkt ICEA S-94-649, AEIC CS8, UL 1072 – MV90 and MV105, CSA 68.10 MV1500AL2114CUXLPE
Aluminum MV Cable, 35kV 1500, 91 Str, TR-XLPE ins, 1/6 CN (14/27), XLPE jkt ICEA S-94-649, AEIC CS8, UL 1072 – MV90 and MV105, CSA 68.10 MV1500AL2714CUXLPE
Aluminum MV Cable, 35kV 1500, 91 Str, TR-XLPE ins, 1/3 CN (10/22), XLPE jkt ICEA S-94-649, AEIC CS8, UL 1072 – MV90 and MV105, CSA 68.10 MV1500AL2210CUXLPE

Medium Voltage Cable – CU Series

Product Type Product Description Rating Remee Part No. & Data Sheet
Copper MV Cable, 35kV 1/0, 19 Str, TR-XLPE ins, 1/3 CN (14/7), XLPE jkt ICEA S-94-649, AEIC CS8, UL 1072 – MV90 and MV105, CSA 68.10 MV1_0CU0714CUXLPE
Copper MV Cable, 35kV 1/0, 19 Str, TR-XLPE ins, 1/2 CN (14/10), XLPE jkt ICEA S-94-649, AEIC CS8, UL 1072 – MV90 and MV105, CSA 68.10 MV1_0CU1014CUXLPE
Copper MV Cable, 35kV 1/0, 19 Str, TR-XLPE ins, 2/3 CN (14/13), XLPE jkt ICEA S-94-649, AEIC CS8, UL 1072 – MV90 and MV105, CSA 68.10 MV1_0CU1314CUXLPE
Copper MV Cable, 35kV 1/0, 19 Str, TR-XLPE ins, Full (14/19), XLPE jkt ICEA S-94-649, AEIC CS8, UL 1072 – MV90 and MV105, CSA 68.10 MV1_0CU1914CUXLPE
Copper MV Cable, 35kV 2/0, 19 Str, TR-XLPE ins, 1/3 CN (14/8), XLPE jkt ICEA S-94-649, AEIC CS8, UL 1072 – MV90 and MV105, CSA 68.10 MV2_0CU0814CUXLPE
Copper MV Cable, 35kV 2/0, 19 Str, TR-XLPE ins, 1/2 CN (14/12), XLPE jkt ICEA S-94-649, AEIC CS8, UL 1072 – MV90 and MV105, CSA 68.10 MV2_0CU1214CUXLPE
Copper MV Cable, 35kV 2/0, 19 Str, TR-XLPE ins, 2/3 CN (14/16), XLPE jkt ICEA S-94-649, AEIC CS8, UL 1072 – MV90 and MV105, CSA 68.10 MV2_0CU1614CUXLPE
Copper MV Cable, 35kV 2/0, 19 Str, TR-XLPE ins, Full (14/24), XLPE jkt ICEA S-94-649, AEIC CS8, UL 1072 – MV90 and MV105, CSA 68.10 MV2_0CU2414CUXLPE
Copper MV Cable, 35kV 3/0, 19 Str, TR-XLPE ins, 1/3 CN (14/10), XLPE jkt ICEA S-94-649, AEIC CS8, UL 1072 – MV90 and MV105, CSA 68.10 MV3_0CU1014CUXLPE
Copper MV Cable, 35kV 3/0, 19 Str, TR-XLPE ins, 1/2 CN (14/15), XLPE jkt ICEA S-94-649, AEIC CS8, UL 1072 – MV90 and MV105, CSA 68.10 MV3_0CU1514CUXLPE
Copper MV Cable, 35kV 3/0, 19 Str, TR-XLPE ins, 2/3 CN (14/20), XLPE jkt ICEA S-94-649, AEIC CS8, UL 1072 – MV90 and MV105, CSA 68.10 MV3_0CU2014CUXLPE
Copper MV Cable, 35kV 3/0, 19 Str, TR-XLPE ins, Full (14/30), XLPE jkt ICEA S-94-649, AEIC CS8, UL 1072 – MV90 and MV105, CSA 68.10 MV3_0CU3014CUXLPE
Copper MV Cable, 35kV 4/0, 19 Str, TR-XLPE ins, 1/3 CN (14/13), XLPE jkt ICEA S-94-649, AEIC CS8, UL 1072 – MV90 and MV105, CSA 68.10 MV4_0CU1314CUXLPE
Copper MV Cable, 35kV 4/0, 19 Str, TR-XLPE ins, 1/2 CN (14/19), XLPE jkt ICEA S-94-649, AEIC CS8, UL 1072 – MV90 and MV105, CSA 68.10 MV4_0CU1914CUXLPE
Copper MV Cable, 35kV 4/0, 19 Str, TR-XLPE ins, 2/3 CN (14/25), XLPE jkt ICEA S-94-649, AEIC CS8, UL 1072 – MV90 and MV105, CSA 68.10 MV4_0CU2514CUXLPE
Copper MV Cable, 35kV 4/0, 19 Str, TR-XLPE ins, Full (12/24), XLPE jkt ICEA S-94-649, AEIC CS8, UL 1072 – MV90 and MV105, CSA 68.10 MV4_0CU2412CUXLPE
Copper MV Cable, 35kV 250, 37 Str, TR-XLPE ins, 1/6 CN (14/8), XLPE jkt ICEA S-94-649, AEIC CS8, UL 1072 – MV90 and MV105, CSA 68.10 MV250CU0814CUXLPE
Copper MV Cable, 35kV 250, 37 Str, TR-XLPE ins, 1/3 CN (14/15), XLPE jkt ICEA S-94-649, AEIC CS8, UL 1072 – MV90 and MV105, CSA 68.10 MV250CU1514CUXLPE
Copper MV Cable, 35kV 250, 37 Str, TR-XLPE ins, 1/2 CN (14/23), XLPE jkt ICEA S-94-649, AEIC CS8, UL 1072 – MV90 and MV105, CSA 68.10 MV250CU2314CUXLPE
Copper MV Cable, 35kV 350, 37 Str, TR-XLPE ins, 1/6 CN (14/11), XLPE jkt ICEA S-94-649, AEIC CS8, UL 1072 – MV90 and MV105, CSA 68.10 MV350CU1114CUXLPE
Copper MV Cable, 35kV 350, 37 Str, TR-XLPE ins, 1/3 CN (14/21), XLPE jkt ICEA S-94-649, AEIC CS8, UL 1072 – MV90 and MV105, CSA 68.10 MV350CU2114CUXLPE
Copper MV Cable, 35kV 350, 37 Str, TR-XLPE ins, 1/2 CN (14/31), XLPE jkt ICEA S-94-649, AEIC CS8, UL 1072 – MV90 and MV105, CSA 68.10 MV350CU3114CUXLPE
Copper MV Cable, 35kV 500, 37 Str, TR-XLPE ins, 1/6 CN (14/15), XLPE jkt ICEA S-94-649, AEIC CS8, UL 1072 – MV90 and MV105, CSA 68.10 MV500CU1514CUXLPE
Copper MV Cable, 35kV 500, 37 Str, TR-XLPE ins, 1/3 CN (14/30), XLPE jkt ICEA S-94-649, AEIC CS8, UL 1072 – MV90 and MV105, CSA 68.10 MV500CU3014CUXLPE
Copper MV Cable, 35kV 500, 37 Str, TR-XLPE ins, 1/2 CN (12/28), XLPE jkt ICEA S-94-649, AEIC CS8, UL 1072 – MV90 and MV105, CSA 68.10 MV500CU2812CUXLPE
Copper MV Cable, 35kV 750, 61 Str, TR-XLPE ins, 1/6 CN (14/23), XLPE jkt ICEA S-94-649, AEIC CS8, UL 1072 – MV90 and MV105, CSA 68.10 MV750CU2314CUXLPE
Copper MV Cable, 35kV 750, 61 Str, TR-XLPE ins, 1/3 CN (12/28), XLPE jkt ICEA S-94-649, AEIC CS8, UL 1072 – MV90 and MV105, CSA 68.10 MV750CU2812CUXLPE
Copper MV Cable, 35kV 750, 61 Str, TR-XLPE ins, 1/2 CN (10/27), XLPE jkt ICEA S-94-649, AEIC CS8, UL 1072 – MV90 and MV105, CSA 68.10 MV750CU2710CUXLPE
Copper MV Cable, 35kV 1000, 61 Str, TR-XLPE ins, 1/12 CN (14/15), XLPE jkt ICEA S-94-649, AEIC CS8, UL 1072 – MV90 and MV105, CSA 68.10 MV1000CU1514CUXLPE
Copper MV Cable, 35kV 1000, 61 Str, TR-XLPE ins, 1/9 CN (14/20), XLPE jkt ICEA S-94-649, AEIC CS8, UL 1072 – MV90 and MV105, CSA 68.10 MV1000CU2014CUXLPE
Copper MV Cable, 35kV 1000, 61 Str, TR-XLPE ins, 1/6 CN (14/30), XLPE jkt ICEA S-94-649, AEIC CS8, UL 1072 – MV90 and MV105, CSA 68.10 MV1000CU3014CUXLPE
Copper MV Cable, 35kV 1000, 61 Str, TR-XLPE ins, 1/3 CN (10/24), XLPE jkt ICEA S-94-649, AEIC CS8, UL 1072 – MV90 and MV105, CSA 68.10 MV1000CU2410CUXLPE
Copper MV Cable, 35kV 1000, 61 Str, TR-XLPE ins, 1/2 CN (10/35), XLPE jkt ICEA S-94-649, AEIC CS8, UL 1072 – MV90 and MV105, CSA 68.10 MV1000CU3510CUXLPE
Copper MV Cable, 35kV 1250, 91 Str, TR-XLPE ins, 1/12 CN (14/19), XLPE jkt ICEA S-94-649, AEIC CS8, UL 1072 – MV90 and MV105, CSA 68.10 MV1250CU1914CUXLPE
Copper MV Cable, 35kV 1250, 91 Str, TR-XLPE ins, 1/9 CN (14/25), XLPE jkt ICEA S-94-649, AEIC CS8, UL 1072 – MV90 and MV105, CSA 68.10 MV1250CU2514CUXLPE
Copper MV Cable, 35kV 1250, 91 Str, TR-XLPE ins, 1/6 CN (12/24), XLPE jkt ICEA S-94-649, AEIC CS8, UL 1072 – MV90 and MV105, CSA 68.10 MV1250CU2412CUXLPE
Copper MV Cable, 35kV 1250, 91 Str, TR-XLPE ins, 1/3 CN (10/30), XLPE jkt ICEA S-94-649, AEIC CS8, UL 1072 – MV90 and MV105, CSA 68.10 MV1250CU3010CUXLPE
Copper MV Cable, 35kV 1250, 91 Str, TR-XLPE ins, 1/2 CN (8/28), XLPE jkt ICEA S-94-649, AEIC CS8, UL 1072 – MV90 and MV105, CSA 68.10 MV1250CU2808CUXLPE

Fiber Optic Cable

Product Type Product Description Rating Remee Part No. & Data Sheet
Loose Tube Fiber 22 Series Loose Tube Single Jacket Non-Armored OSP 22-XXX-XXX-EXSXWN
Loose Tube Fiber – Gel Free 22D Series Loose Tube Single Jacket Non-Armored with AquaLock® OSP 22D-XXX-XXX-EXSXWN
Loose Tube Fiber – Armored 28 Series Loose Tube Single Jacket Single Armor OSP 28-XXX-XXX-EXSXWN
Loose Tube Fiber – Armored (Gel Free) 28D Series Loose Tube Single Jacket Single Armor with AquaLock® OSP 28D-XXX-XXX-EXSXWN

Bare Stranded Copper Ground Wire

Common sizes are available upon request
