Description

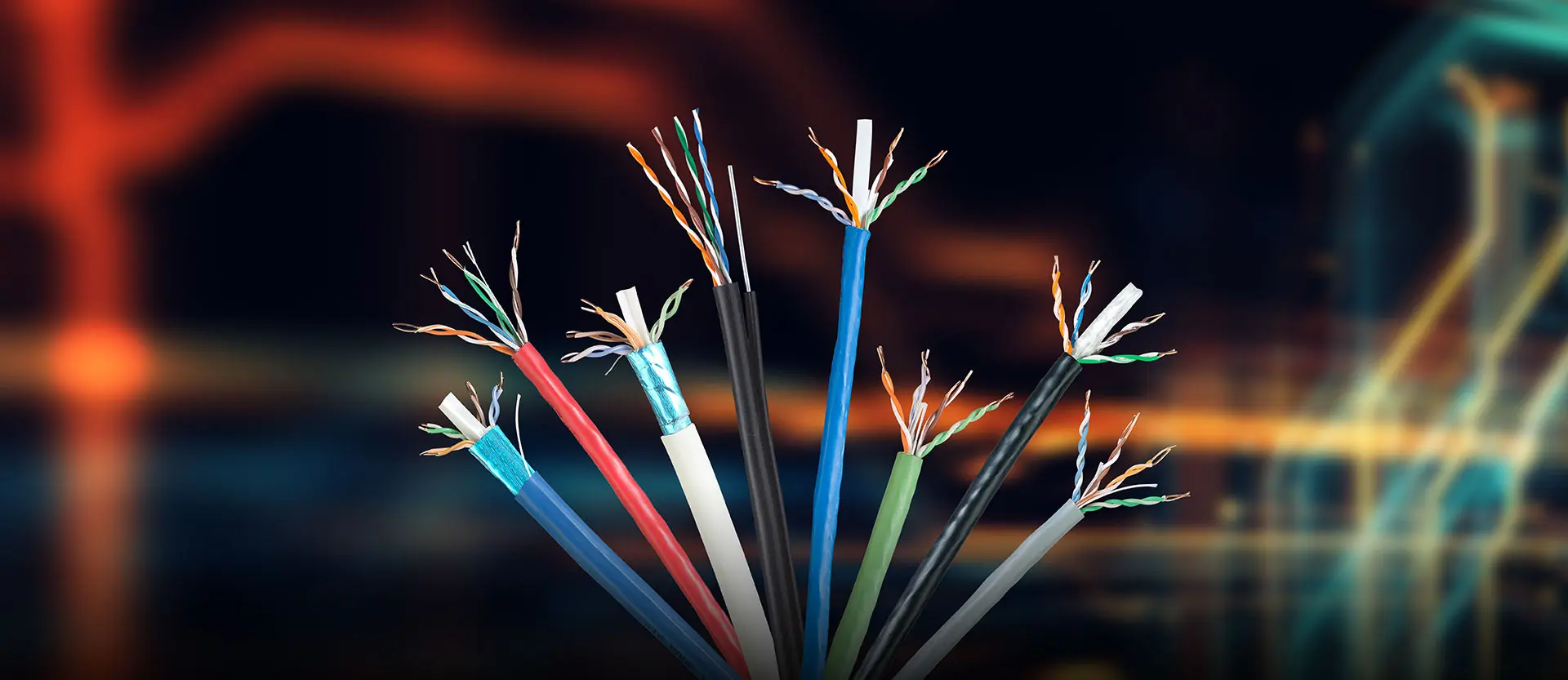

Remee LAN & Premise Cables provide robust solutions for commercial enterprise networks to connect people, information and technology. Typically constructed with twisted pairs, premise cables provide performance up to 10 Gigabit Ethernet and beyond.
Remee LAN & Premise Cables are available:
- To meet/exceed EIA/TIA Category 5e, 6 or 6A
- As PVC riser, plenum rated and LSZH
- In 2 to 25 pair counts (all with varying color jackets)
- Armored or bundled
- Available in UTP (unshielded), STP (shielded), Fiber Optic Cable and Coaxial Cable types.
Remee’s plenum rated cables, such as Cat5e plenum cable or Cat6 plenum cable, are popular items.
Also see Remee Fiber Optic Cables for riser, horizontal and outdoor fiber optic cabling installation needs, especially for 10 Gigabit Ethernet performance.
Warranties
If you need a fully certified solution for your LAN & Premise Wiring needs, ask about Remee’s 25-year open architecture R.O.S.E. Warranty Program.
Power over Ethernet Cable (PoE)
Power over Ethernet (PoE) is a technology that lets network cables carry electrical power. For example, a digital security camera normally requires two connections to be made when it is installed:
1. A network connection, in order to be able to communicate with video
recording and display equipment.
2. A power connection, to deliver the electrical power the camera needs to
operate.
However, if the camera is PoE enabled, only the network connection needs to be made, as it will receive electrical power from the Power over ethernet cable.
The PoE concept is being re-imagined to align data and power for the future of the building. “New power solutions being introduced today enable high-power options with traditional low-voltage labor and safety. One such option is intelligent power, which parallels the distance and space savings of optical fiber, reducing runs of copper cabling and enabling Power over Ethernet cable for today’s applications as well as those in the not-too-distant future. (Cabling Installation & Maintenance, Volume 26, Issue 3, March 26, 2018.)
Newer PoE standards are being established to enable 55 and 90 to 100 watt transport, which is expected to open up many new applications. Contact Remee to determine the best PoE cable construction for your next project.
For more information on the latest demands and trends for Power over Ethernet Cable, view the article in Cabling Installation & Maintenance titled “Distance, Wattage Considerations Drive Power Decisions.”
Activate™ Powered Cable Solutions (PCS)
This expanded offering of Powered Cable Solutions includes a full selection of standard Remee Category PoE and custom Hybrid PCS cables for extended distances.
The new Activate™ PCS line includes composite cables, Siamese cables, and various iterations of standard PoE cable constructions. See our Activate™ Powered Cable Solutions page for more information, part numbers and spec sheets.
Standards & Certifications
Remee LAN & Premise cables are manufactured to meet or exceed all current EIA/TIA standards. Remee LAN & Premise cable meets applicable ETL & CSA requirements. Remee LAN & Premise cable is manufactured under our ISO 9001 certification.
Modified Standard & Custom LAN & Premise Cables
In addition to standard stock LAN & Premise cables, Remee can modify or customize any cable.
- Bundled, composite and hybrid cables
- Jacketing & insulation options
- Various shielding configurations
- Non-standard colored jackets
- Optional striping
- Other requirements you may have
Standard & Other Available LAN & Premise Cables
Choose from the cable options in the following table. Most items are in stock, but check with Remee for availability. Part numbers link to cable spec sheets.
Applications
Premise cables are available in non-plenum and plenum rated versions for structured cabling systems used for:
LANs, WANs & MANs
DATA CENTERS
TELCO CLOSETS
TELCOM – CO, OSP
VIDEO
HOME NETWORKING
AUTOMATION
10 GIGABIT+ ETHERNET
Remee structured cabling also supports these applications:
PoE, PoE+, PoE++, 4PPoE
WIRELESS LANs
SECURITY SYSTEMS
CAMERAS
AUDIO/VISUAL
BUILDING AUTOMATION
Product Type | Product Description | Rating | Remee Part No. & Data Sheet |
---|---|---|---|
Category 5e | Category 5e 350MHz | CMP | 5BE244UTP/350 |
Category 5e | Category 5e Shielded | CMP | 5BE234STP |
Category 5e | Category 5e 350MHz Siamese | CMP | 5BE244UTP350DUAL |
Category 6 | Category 6 550Mhz No Spline | CMP | 6BNS |
Category 6 | Category 6 Shielded 550MHz | CMP | 6B234STPENH |
Category 6 | Category 6 Dual | CMP | 6BE234UTPDUAL |
Category 6 | Category 6 Enhanced 650MHz w/ Spline | CMP | 6B234UTPENH |
Category 6a | Category 6a 500MHz – Small Diameter | CMP | 6UBRD234UTP |
Category 6a | Category 6a Shielded 500MHz | CMP | 6UB234STP |
Category 5e | Category 5e 350MHz | CMR | 5AE244UTPR |
Category 5e | Category 5e Shielded | CMR | 5AE244STP |
Category 5e | Category 5e 350MHz Siamese | CMR | 5AE244UTP/350DUAL |
Category 6 | Category 6 550MHz No Spline | CMR | 6RNS |
Category 6 | Category 6 Shielded 550MHz | CMR | 6RF234STPENH |
Category 6 | Category 6 Dual | CMR | 6RF234UTPRDUAL |
Category 6 | Category 6 Enhanced 650MHz w/ Spline | CMR | 6RF234UTPENH |
Category 6a | Category 6a 500MHz – Small Diameter | CMR | 6UARD234UTP |
Category 6a | Category 6a Shielded 500MHz | CMR | 6UA234STP |
Category 5e - Direct Burial | Category 5e 350MHz Water Blocking Gel PE Jacket | OSP | 5AEFLD |
Category 5e - Direct Burial | Category 5e Shielded PE Jacket | OSP | 5AE350STP/POLY |
Category 5e - Aerial | Category 5e 350 MHz Water Blocking Gel w/ Messenger PE Jacket | OSP | 5AEFLDMESS |
Category 6 - Direct Burial | Category 6a 250 MHz Water Blocking Gel PE Jacket | OSP | 6DBFLD234UTP |
Category 6 - Aerial | Category 6 Water Blocking Gel w/ Messenger PE Jacket | OSP | 6DBFLD234UTPMESS |
Category 6 - Direct Burial | Category 6 Shielded 250MHz PE Jacket | OSP | 6DB234STP |
