SMPTE Cable 311M Hybrid: Backbone of 4K/8K Broadcasting

Summary: SMPTE Cable 311M hybrid cables have become the gold standard for 4K and 8K broadcasting, streamlining camera-to-CCU connections through a single line that delivers power, fiber optics, and control signals. By overcoming the limitations of traditional triax cables, SMPTE hybrid cables unlock longer connections, higher bandwidth, and reliable performance in stadiums, golf courses, and studios, which is critical for next-generation broadcast applications.

How do world-class sports broadcasts deliver pristine video from distant camera locations, even across vast stadiums and sprawling golf courses? The secret lies in innovative cable technology. With 4K and 8K content dominating today’s broadcasts, SMPTE Cable 311M hybrids have become indispensable for connecting cameras to control units over long distances while maintaining exceptional signal quality and reliability. Let’s explore what makes SMPTE the backbone of modern broadcasting and provide actionable insights for engineers, integrators, and decision-makers.

Understanding SMPTE Cable 311M Hybrid

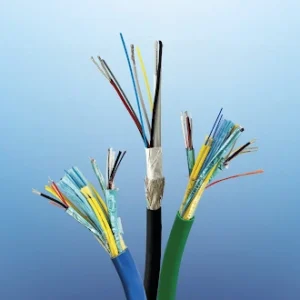

The SMPTE 311M Hybrid cable is a specialized broadcast cable designed to handle the increased data rates and distances required for 4K and 8K video transmission. Unlike traditional triax cables, which rely solely on copper conductors, this cable integrates both fiber optics and copper conductors into a single cable.

Key Features:

• Fiber Optics: Two single-mode optical fibers transmit high-bandwidth video signals over long distances without degradation.
• Copper Conductors: Multiple copper conductors deliver power and control signals to the camera, eliminating the need for separate power cables.

• Shielding: Tinned copper braid shielding ensures minimal interference and maintains signal integrity. Individually shielded pairs are also available.
• Durability: A central strength member and rugged jacket materials provide resistance to physical stress and environmental factors.

This hybrid design allows for longer cable runs up to several kilometers without signal loss, making it ideal for large-scale broadcast environments.

Overcoming Triax Cable Barriers for HD/UHD Content

Traditional triax cables were once the mainstay in broadcast setups, but they cannot keep up with the bandwidth and distance requirements of modern HD and UHD production.

Limitations of Triax Cables:

• Bandwidth constraints introduce signal distortion and delays in HD/4K transmission
• Maximum distance falls short for large venues
• Increased susceptibility to electromagnetic interference and weathering
• Complex installation and maintenance requirements

Advantages of SMPTE Hybrid Camera Cables:

• Long-distance runs—ideal for stadiums, golf courses, and remote production
• Minimizes electromagnetic interference (EMI)
• Ruggedness and flexibility for repeated deployments
• Transmission of power, control, and high-definition video in one cable

SMPTE Cable 311M in Sports, Studios, and Beyond

Applications at Sports Venues and Golf Courses

Broadcasting live sports, golf tournaments, and large events means stretching camera connections hundreds or even thousands of feet across tough terrain. SMPTE 311M hybrid cables are designed for these challenges:

• Direct connection from cameras to base stations/CCUs in stadiums or outdoor fields
• Support for multiple camera positions, long runs from truck docks to field cameras
• Proven durability in harsh weather, repeated rigging, and on-the-move outdoor use

The PGA TOUR Studios rely on SMPTE camera cables for real-time feeds, instant camera reviews, and seamless content delivery across vast distances.

Source: PGA Tour studios

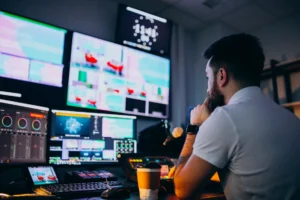

SMPTE 311M in Broadcast Studios

Inside studios, SMPTE hybrid cables reduce clutter and streamline workflows:

• Centralized connections for multiple 4K/8K cameras to control rooms
• Quick changeover and modular reconfiguration for live production
• Reliable cabling for continuous broadcasts (newsrooms, talk shows, sports desks)

Remee ClearCast™ Broadcast Cables are trusted by engineers for consistent, interference-free transmission in both studio setups and remote broadcasts.

Hybrid Construction: Fiber, Power & Control in One

SMPTE 311M cables feature meticulous construction for performance, safety, and longevity:

Key Construction Elements:

• Single-mode optical fibers: for ultra-high bandwidth, long-distance data
• Copper power conductors (20 AWG): deliver power to field cameras
• Smaller-gauge copper conductors (24 AWG): transmit control and ancillary data
• Reinforced strength member: resists crushing, tension, and temperature extremes
• Durable jackets: flame-retardant, flexible, and suitable for indoor/outdoor use

These features make these cables uniquely suited for both rugged environments and pristine studio installations.

The SMPTE Cable 311M Hybrid stands as a testament to the evolving needs of the broadcast industry. Its integration of fiber optics, power, control, and signal transmission into a single cable solution addresses the challenges posed by traditional triax cables, especially in the realm of 4K and 8K broadcasting. As broadcast environments continue to grow in complexity and scale, the SMPTE 311M Hybrid cable will undoubtedly remain a cornerstone of high-quality, reliable signal transmission.

For tailored cable solutions to meet your specific broadcast needs, don’t hesitate to request a custom cable from Remee. You can also visit Remee’s web page on ClearCast™ Broadcast Cables.

FAQs:

Q1: What is the main difference between a triax cable and an SMPTE 311M hybrid cable?

   A: The main difference is the core technology. Triax cables are entirely copper-based, using a coaxial design to transmit signals. SMPTE hybrid cables, on the other hand, use a combination of fiber optics for high-bandwidth video and copper for power and control. This allows them to transmit signals over much longer distances without degradation, which is essential for 4K/8K broadcasting.

Q2: Can SMPTE 311M Cables Handle Outdoor Conditions?

   A: Yes. With rugged jackets, strong members, high-grade shielding, and flexible construction, they are built for both studio installs and punishing outdoor deployments.

Q3: What Cameras Use SMPTE 311M Cables?

   A: Top models across Hitachi, Alexa Fiber Remote, JVC, Sony HDCU series, Grass Valley, and Ikegami rely on these SMPTE 311M cables for professional-grade broadcasting.

Q4: How do I choose the right SMPTE 311M Hybrid cable for my setup?

   A: Consider factors like the required transmission distance, environmental conditions, and specific equipment compatibility. Consulting with experts or manufacturers can help in selecting the appropriate cable configuration for your needs. Remee is available to assist with your application needs. Feel free to ask a Remee Expert Engineer.
