Understanding the New IEEE 802.3bt Standard: How 100W PoE Changes Cable Requirements
Summary: The IEEE 802.3bt standard revolutionizes Power over Ethernet (PoE) technology by delivering up to 100 watts over a single cable. This advancement expands PoE’s reach into demanding applications like lighting, IoT, and surveillance, but it also changes how cables must be selected and designed. Learn how higher power impacts AWG size cable construction, and why upgrading to improved solutions like Remee’s Activate™ cables delivers reliable performance under these demanding conditions.
Did you know PoE IEEE 802.3 now lets you power devices with up to 100 watts from a single Ethernet cable? The new IEEE 802.3bt standard, often called 4PPoE (Four-Pair Power over Ethernet) or PoE++, represents a major step beyond earlier PoE standards.
This leap transforms Ethernet from a simple data transport medium into an integrated power infrastructure suitable for powering LED lighting, smart building sensors, digital signage, and even compact computing devices. However, with great power comes greater demands on cabling. The wrong cable choice can lead to excessive heat, voltage drop, and long-term reliability issues.
What Is IEEE 802.3bt and Why It Matters
The IEEE 802.3bt standard builds upon earlier PoE versions, enabling the transmission of both data and high-level power through standard Ethernet cabling.
Key Enhancements of the IEEE 802.3bt Standard
- Increased Power Delivery: Up to 100W at the source, typically around 71–73W available to devices after transmission loss.
- Four-Pair Powering: Uses all four twisted pairs in the cable for efficient power distribution and lower resistance.
- Backward Compatibility: Fully interoperable with previous PoE versions like IEEE 802.3af and IEEE 802.3at.
- Support for High-Power Devices: Perfect for pan-tilt-zoom cameras, interactive kiosks, wireless access points, and LED lighting systems.
This expansion of PoE is driving significant market growth, particularly in IoT and smart infrastructures, where centralized low-voltage power is both efficient and scalable.
Understanding AWG Size in High-Power PoE Applications

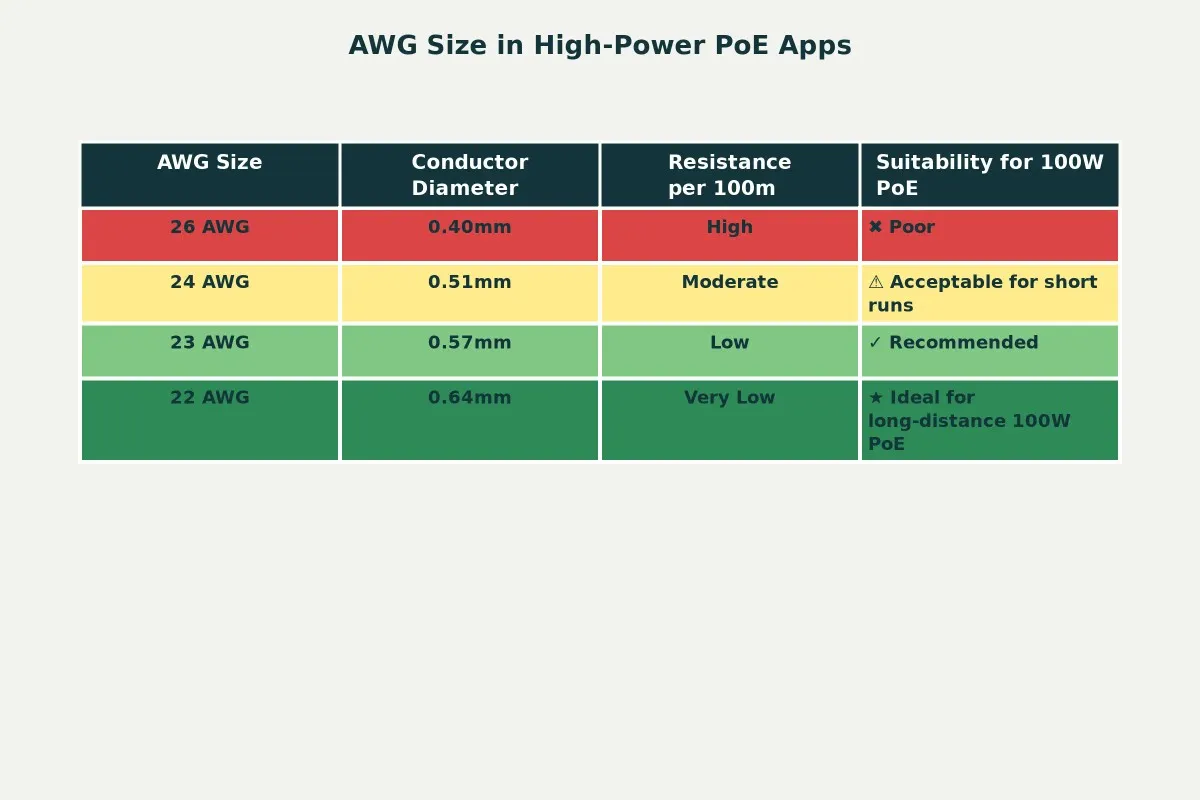

Conductor gauge influences how well a cable carries current with minimal resistance. In PoE IEEE 802.3 systems, a proper AWG size enables efficient power delivery over distance.
Cables with 23 or 22 AWG conductors, like Remee’s Activate™ and STREAMline™ PoE solutions, minimize power loss and maintain stable thermal performance under heavy electrical loads.
The Impact of 100W PoE on Cable Design
Delivering 100W PoE IEEE 802.3 necessitates rethinking cable selection. Higher sustained power creates challenges around heat, resistance, and signal stability, especially in long runs or cable bundles.
Why Cable Choice Now Matters More Than Ever
- Heat Build-Up and Resistance:
High current flowing through smaller-gauge conductors increases heat generation, risking network performance and safety. - Voltage Drop Concerns:
Longer cable runs can cause voltage loss, reducing the power available to the device. - Thermal Stability:
PoE bundles installed in conduits or trays can trap heat, exacerbating energy losses. - Signal Integrity:
Excessive heat may affect impedance balance and degrade Ethernet data transmission quality.
To counter these issues, network designers must choose cables with properly rated conductors, specifically according to American Wire Gauge (AWG) standards.
Why Traditional Category Cables May Need Upgrading
Older cables (e.g., Cat 5e, early Cat 6) were designed for IEEE 802.3af/at (15.4W or 30W). The new 100W PoE IEEE 802.3 standard imposes much greater demands, meaning these legacy cables are often inadequate.
Common Limitations of Legacy Cabling
- Smaller conductors cause more power loss
- Insulation and jacketing may not be rated for high heat
- Bundled cables trap more thermal energy
- Degraded signal quality over time due to increased temperature
Transitioning to PoE-rated and thermally stabilized cables ensures network safety, reliability, and efficiency over the long term.
For professionals exploring cable upgrades or custom solutions, you can ask an expert at Remee to identify the best fit for your application.
Practical Applications Driving 100W PoE Adoption
The versatility of high-power PoE drives adoption in automation, smart environments, and public spaces.
Use Cases
- Smart LED Lighting Systems: Centralized low-voltage lighting with minimal installation complexity. See Remee Case Study: Remee & Sinclair Digital Provide the Largest LED Lighting System…for Mouser Electronics.
- Digital Signage and Interactive Displays: Power and data through a single cable for clean, efficient setups.
- IoT Devices: Remote sensors, controllers, and small devices operating reliably on Ethernet power.
- Security and Access Systems: Cameras, card readers, and intercoms powered through PoE.
- Hospitality and Office Environments: Wireless access points and VoIP phones benefit from reduced wiring costs.
To explore a tailored configuration that fits your project’s specific needs, request a custom cable from Remee. Our technical team can design cables optimized for unique power and data delivery scenarios.
The IEEE 802.3bt standard marks a pivotal point in digital power delivery. But to unlock its potential, the right cabling is non-negotiable. Proper conductor sizing, heat management, and material quality directly influence network efficiency, safety, and sustainability.
Choosing cables like Remee’s Activate™ Powered Cable Solutions or STREAMline™ LAN & Premise Cables gives you the assurance that your system can handle tomorrow’s power and data needs efficiently, durably, and safely.
For expert guidance or to configure a customized PoE cable solution, ask a Remee Expert.
FAQ:
Q1: What makes IEEE 802.3bt different from previous PoE standards?
A: IEEE 802.3bt introduces 4-pair powering, enabling up to 100W delivery compared to 15.4W (802.3af) and 30W (802.3at). It also introduces new classification systems for improved power negotiation.
Q2: Can existing Cat 5e cables be used for 100W PoE?
A: Technically, Cat 5e can support PoE, but it is not ideal for sustained 100W applications due to smaller conductor sizes and lower heat tolerance. Cat 6A or specialized 23–22 AWG PoE cables are recommended.
Q3: What happens if you use undersized cables for high-power PoE?
A: Undersized cables can overheat, causing signal degradation, increased voltage drop, and potential safety risks. Using cables with proper AWG size ratings ensures efficiency and equipment longevity.
Q4: How do I choose the right cable for IEEE 802.3bt applications?
A: Focus on conductor gauge (22AWG or 23AWG or thicker), thermal rating, shielding needs, and certified compliance with IEEE 802.3bt.
